SEMI - AUTOMATIC PILE TURNER PT10 PAJ

MODEL MAX. SHEET SIZE PLATFORM OPENING MAX. LIFTING CAPACITY
PT 10PAJ31.5 ” x 47.25 ” / 800 x 1200 mm28.0 " - 52.75 " / 710 - 1340 mm2200 lbs / 1000 kg

STANDARD FEATURES

  • Robust steel design

  • Hydraulic lifting and pile clamping unit

  • Variable tilt angle for adapting to different materials

  • Manual turning in horizontal stack position

  • Aeration with powerful air blower and broad air nozzles

  • Vibration device with alignment stop

  • Adjustable vibration power

  • Transport pockets for easy moving of the pile turner by pallet jack

  • Adjustable platform pressure, for protection of sensitive paper or material

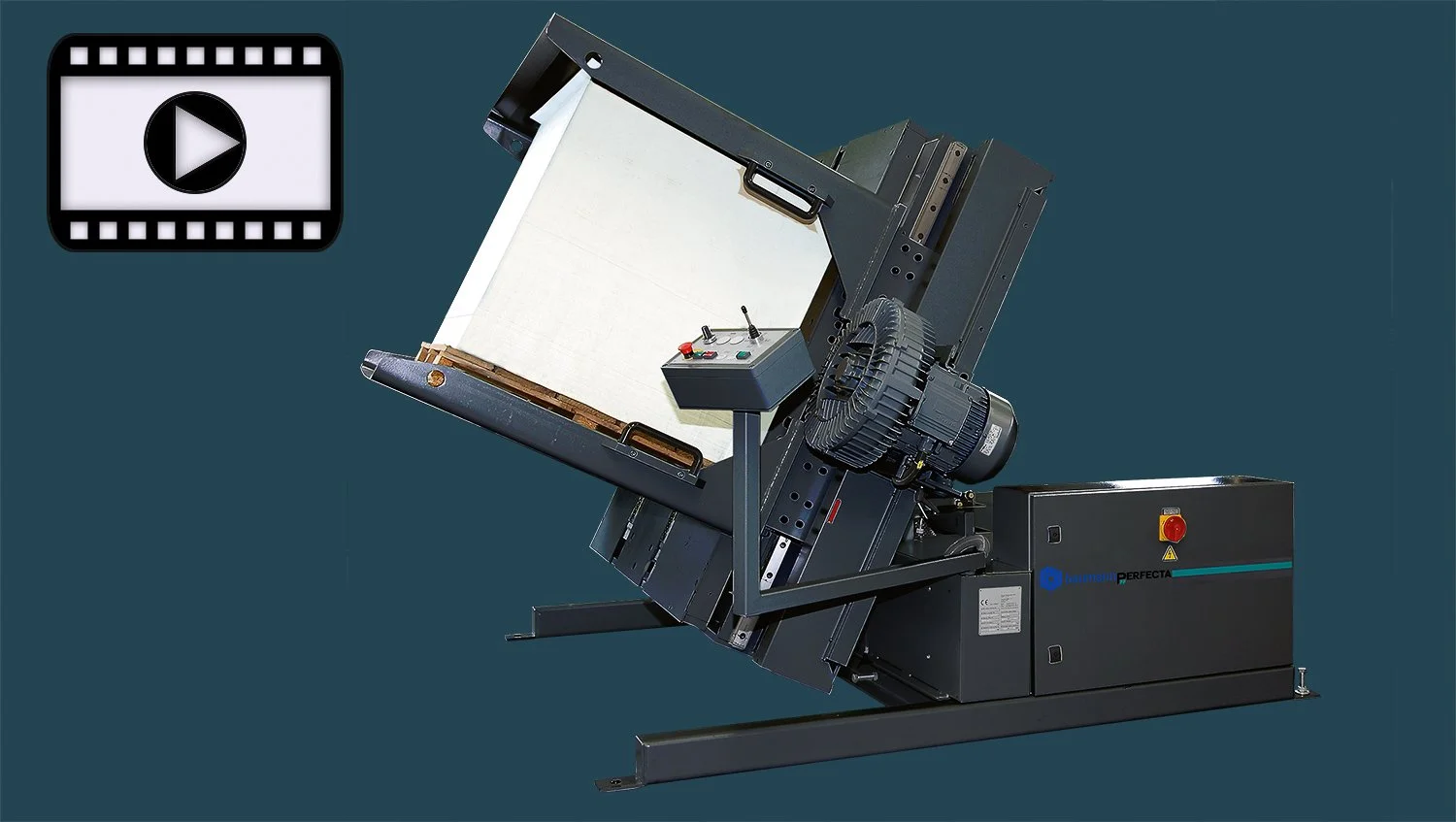

SEMI - AUTOMATIC PILE TURNER BSW - LV

(HEAVY-DUTY VERSION)

MODEL MAX. SHEET SIZE PLATFORM OPENING MAX. LIFTING CAPACITY
BSW 3-1200 LV (N)31.5 " x 47.3 " / 800 x 1200 mm24.8 " - 57.1 " / 630 - 1450 mm2640 lbs / 1200 kg
BSW 3-1200 LV (H)31.5 " x 47.3 " / 800 x 1200 mm28.3 " - 79.1 " / 720 - 2020 mm2640 lbs / 1200 kg

STANDARD FEATURES

  • Robust steel design

  • Hydraulic lifting and pile clamping unit

  • Variable tilt angle for adapting to different materials

  • Manual turning in horizontal stack position

  • Aeration with powerful air blower and broad air nozzles

  • Vibration device with alignment stop

  • Adjustable vibration power

  • Adjustable aeration cycle time and air volume

AVAILABLE OPTIONS

  • De-ionization device for static charges

  • Module for remote service access

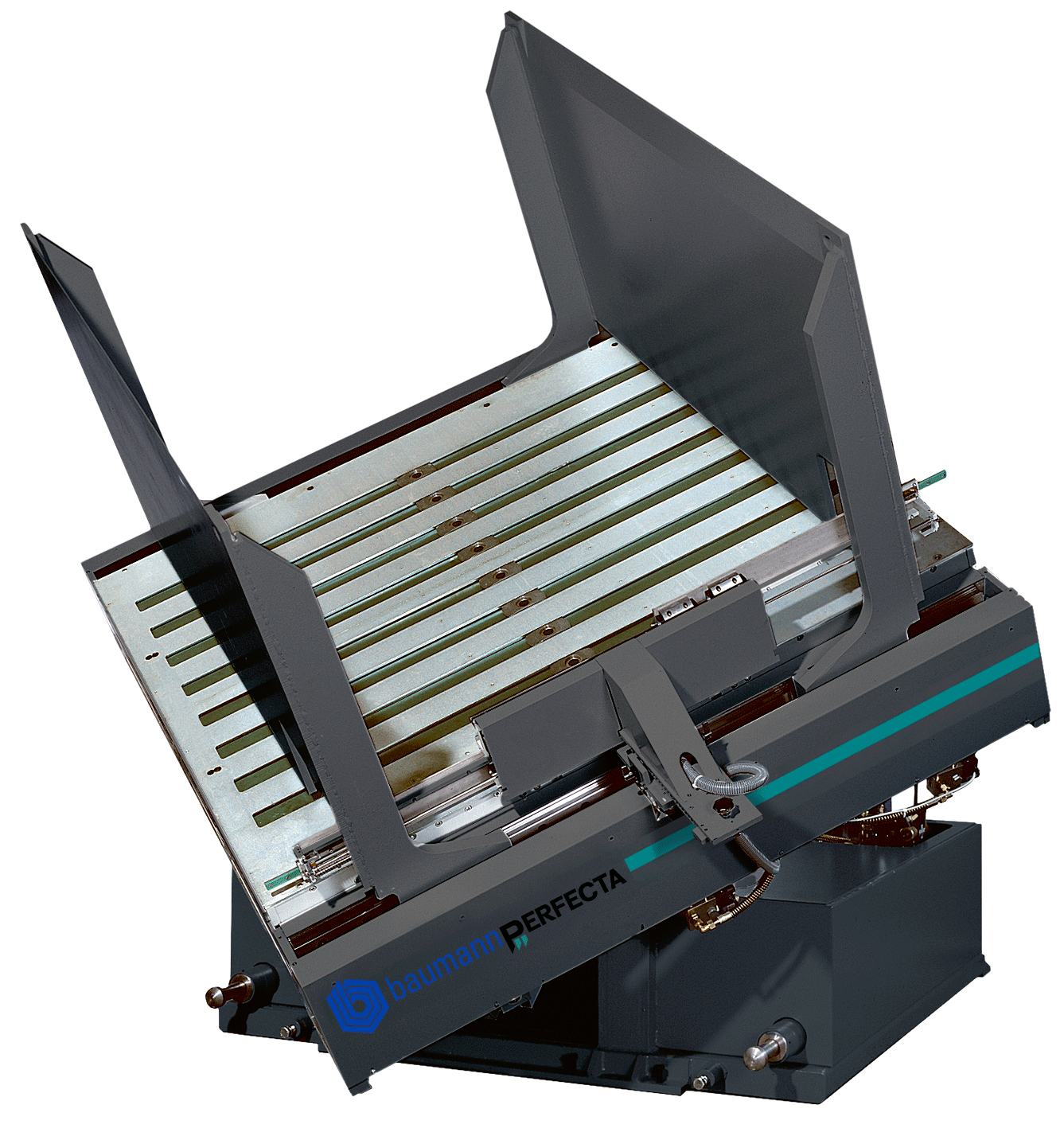

AUTOMATIC PILE TURNER BSW - LDV

MODEL MAX. SHEET SIZE PLATFORM OPENING MAX. LIFTING CAPACITY
BSW 7-2000 LDV49.2 " x 65 " / 1250 x 1650 mm31.5 " - 79.1 " / 800 - 2020 mm4400 lbs / 2000 kg

STANDARD FEATURES

  • Robust steel design

  • Hydraulic lifting and pile clamping unit

  • Variable tilt angle for adapting to different materials

  • Aeration with powerful air blower and broad air nozzles

  • Vibration device with alignment stop

  • Adjustable vibration power

  • Adjustable aeration cycle time and air volume

  • Motorized and fully automatic pile turning

  • Safety fence and safety light barrier

AVAILABLE OPTIONS

  • Surrounding catwalk

  • Additional control panel

  • Single pallet clamping for easy pallet change

  • Module for remote service access

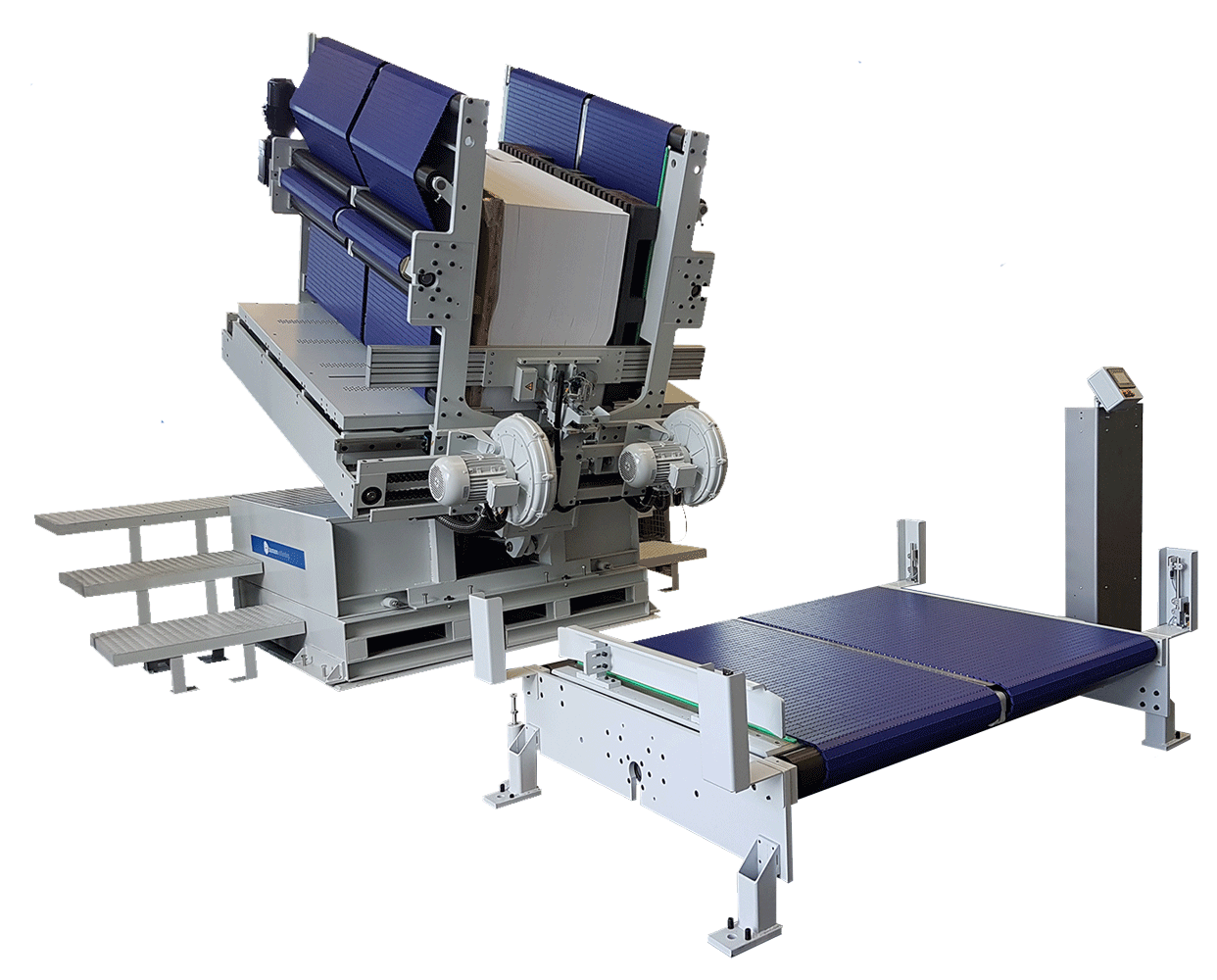

AUTOMATIC PILE TURNER BSW - AUP

The Pile Turner BSW-AUP has been designed specifically for the needs of non-stop automatic sheet-fed printing and die cutting machines. This machine can be integrated in logistic systems for fully automatic pallet changes and stock preparation.

Fast pallet changes with pallet clamping plus sheet aeration and alignment by vibration.

MODEL MAX. SHEET SIZE PLATFORM OPENING MAX. LIFTING CAPACITY
BSW 3-AUP29.5 " x 41.7 " / 750 x 1060 mm23.6 " - 78.7 " / 600 - 2000 mm2640 lbs / 1200 kg
BSW 7-AUP47.6 " x 64.6 " / 1210 x 1640 mm23.6 " - 78.7 " / 600 - 2000 mm4400 lbs / 2000 kg

STANDARD FEATURES

  • Robust steel design

  • Hydraulic lifting and pile clamping unit

  • Variable tilt angle for adapting to different materials

  • Aeration with high performance air blowers and broad air nozzles

  • Vibration device with alignment stop

  • Adjustable vibration power

  • Adjustable aeration cycle time and air volume

  • Motorized and fully automatic pile turning

  • Pallet clamping for one-way pallets

  • Safety fence and safety light barrier

AVAILABLE OPTIONS

  • Additional logistic elements for automatic pallet changes

  • Surrounding catwalk

  • De-ionization device for static charges

  • Module for remote service access

For non-stop feeding of sheet fed presses and die cutting machines. Fast pallet changes with pallet clamping plus sheet aeration and alignment by vibration. Inline solutions with integrated logistic systems.

Inline solutions with integrated logistic systems.
