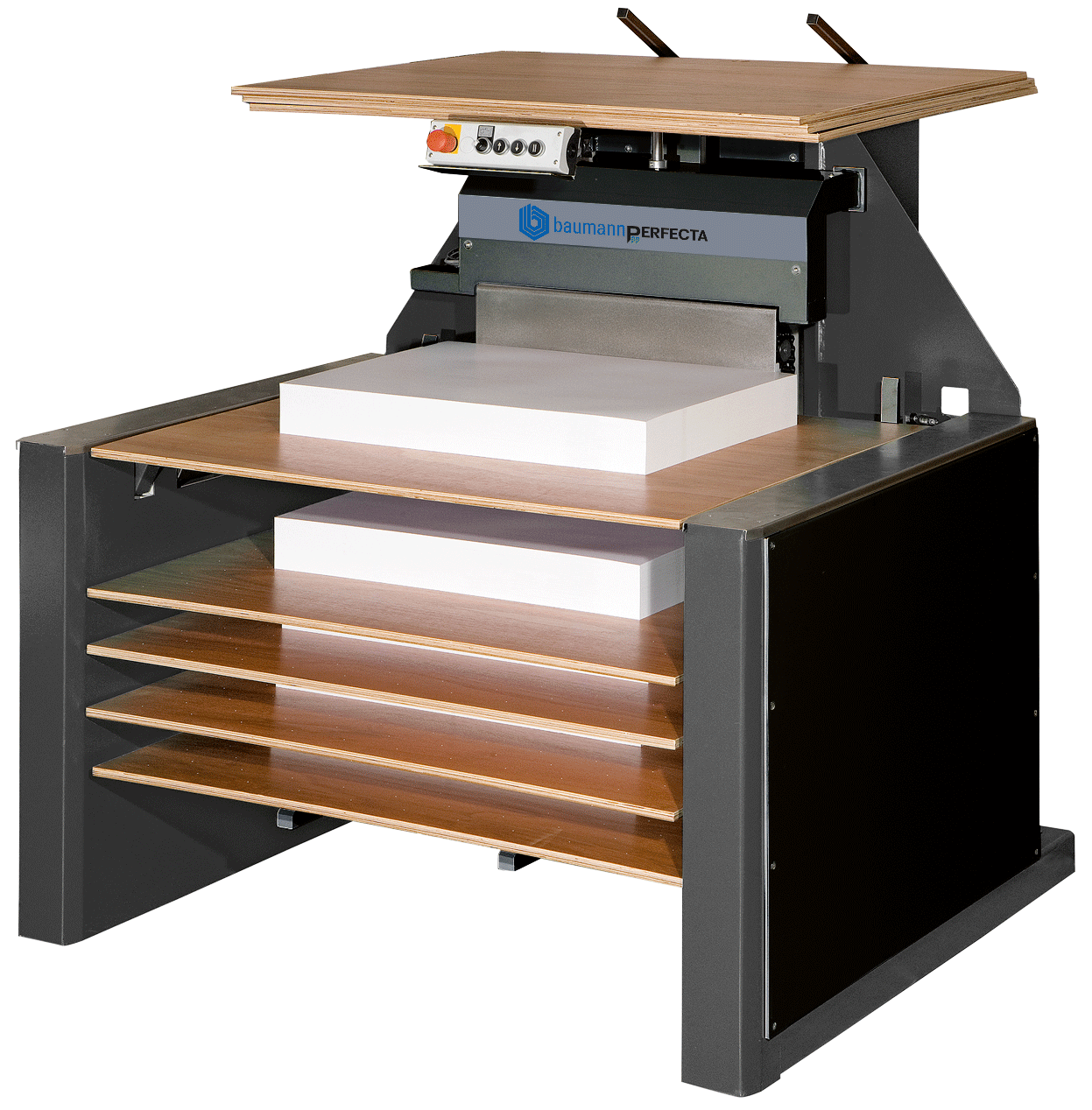

 AIR BOARD LIFT BLL


BAUMANN-PERFECTA Air Board Lifts are designed to buffer pre-jogged layers prior to cutting or for storing finished products prior to another finishing process.

BAUMANN-PERFECTA Air Board Lifts are designed to buffer pre-jogged layers prior to cutting or for storing finished products prior to another finishing process.


MODEL MAX. SIZE MAX. LIFTING CAPACITY
BLL 333.5 " x 43.3 " / 850 mm x 1100 mm1430 lbs / 650 kg

STANDARD FEATURES

  • Robust steel design

  • Hydraulic lifting drive

  • Powerful blower for air bed

  • Air board storage rack

  • 3 air boards included

  • Emergency stop push button

  • Lowering safety device

AVAILABLE OPTIONS

  • Additional air boards

  • Air boards of other manufacturers

  • Air boards with gripper cut-outs

  • Transfer system for automatic ejection of empty air boards

  • Transfer system for automatic insertion of air boards


MODES OF OPERATION

INLINE BETWEEN AUTOMATIC JOGGER AND PAPER CUTTER

  • The Air Board Lift serves as a buffer between jogging and cutting system.

Offline jogging station

  • Multiple layers of jogged material can be transferred to the cutting system.

  • At the cutter the stack is received by another Air Board Lift BLL.

  • Each layer can either be fed manually at the front of the cutter or by an automatic gripper system for loading into the rear of the paper cutter.
