CUTTING AND PAPER HANDLING AUTOMATION


Baumann Perfecta RGB.png


Up to 300% more cuts efficiently with just one cutter? BAUMANN-PERFECTA makes it possible! With an intelligent combination of a high-speed guillotine and state of the art peripherals, the company’s system experts do it every day. Tailored to any size, and always with the philosophy that has made the company a worldwide system specialist in great demand: perfect precision is combined with the highest safety features for each individual component up to the complete configuration. This includes operator prompting, programming in automatic teach-in-mode, or ergonomically and timesaving with the graphic sequence simulation of the BP control. Moreover, the open BAUMANN-PERFECTA control system serves as an interface for standard or custom tailored peripheral equipment.

For your solution with unlimited possibilities, please feel free to consult with us as you cut your way into the future.


STANDARD SOLUTIONS

CUTTING SYSTEM BETA

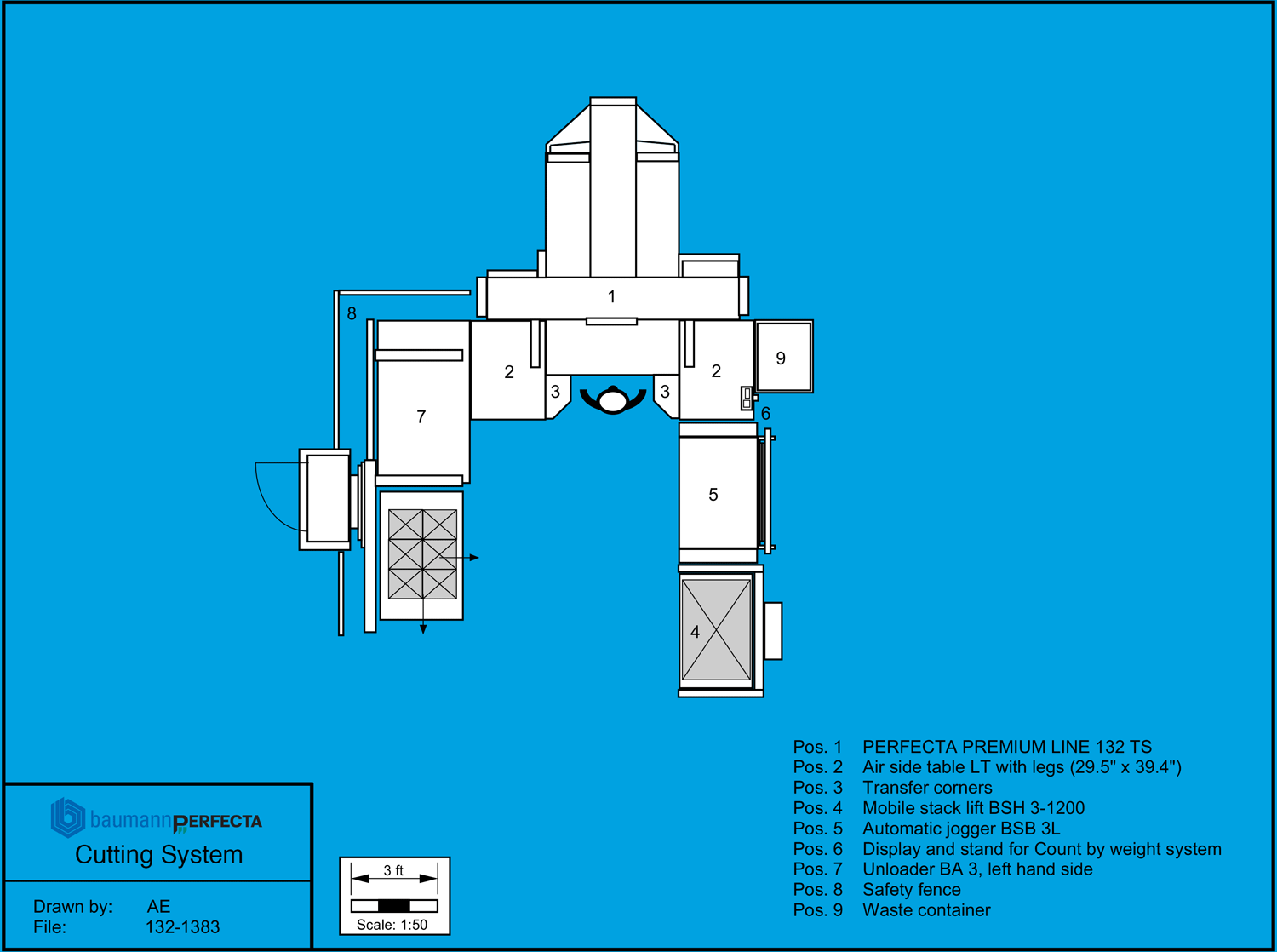

Here is where efficiency and alleviation of work starts. Adding a photo cell controlled Mobile Stack Lift BSH and an Automatic Jogger BSB-L with air removal will make the process of stock preparation a lot easier and therefore much faster. These components can be placed at either side of the cutter, inline with the front table, or in the L-shape layout as shown here.

Click to enlarge the layout image.

The Automatic Unloader BA becomes the workhorse in the cutting department. It boosts the productivity up to 70%. The operator is already paper jogging or cutting again while small or larger products are re-stacked fully automatically on the pallet. The unloader is available for left or right hand side of the cutting system.



If your cutting jobs require a fair amount of gutter cuts or back trimming, the efficiency at your next high-speed cutter could go up by 40% with the addition of an Automatic Waste Removal system AWR. The BAUMANN-PERFECTA AWR-system is servo-driven, extremely fast, and the time how long the table stays open is adjustable, so even the most sticky material goes out of the way. For thin paper or material effected by static charge a Multi-nozzle blow down device can be added to speed up the process of waste removal.
